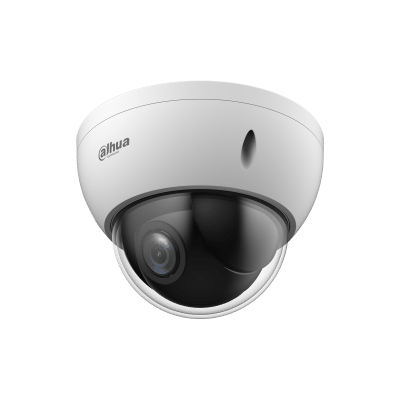

Dahua 4MP 4x Starlight WizSense Network PTZ Camera

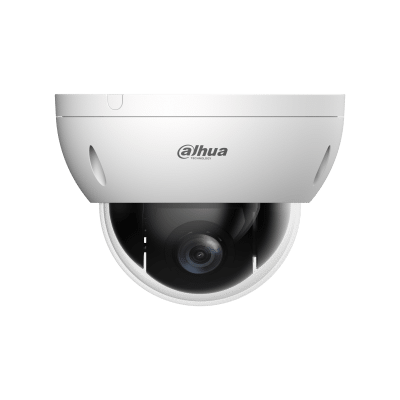

Dahua 4MP 4x Starlight WizSense Network PTZ Camera - Image 2

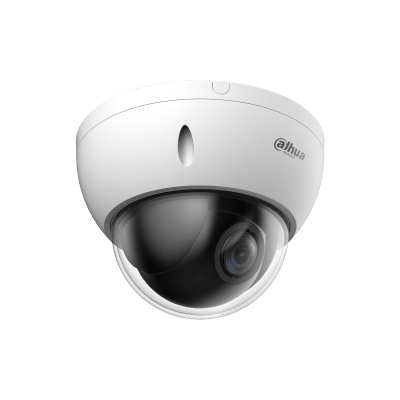

Dahua 4MP 4x Starlight WizSense Network PTZ Camera - Image 3

Dahua 4MP 4x Starlight WizSense Network PTZ Camera

195 €244 €

  • 1/2.8″ CMOS.
  • Powerful 4x optical zoom.
  • Max.25/30fps@4M/3M.
  • Max 100°/s pan speed.
  • Supports face detection.
  • Support PoE.
  • IP66, IK10.
  • SMD 3.0.
  • 6000V lightning-proof.

Request quote
Add to wishlist

Specifications

Camera
Image Sensor 1/2.8″ CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 512 MB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
Lens
Focal Length 2.8 mm–12 mm
Max. Aperture F1.6–F3.0
Field of View H: 90.3°–29.4°; V: 48.5°–16.6°; D: 105.7°–33.6°
Optical Zoom 4×
Focus Control Auto; semi-auto; manual
Close Focus Distance 1.5 m (4.92 ft)
Iris Control Fixed
DORI Distance Detect Observe Recognize Identify
240 m (787.40 ft) 94.8 m (311.02 ft) 48 m

(157.48 ft)

 24 m

(78.74 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
PTZ
Pan/Tilt Range Pan: 0°–355°
Tilt: 0°–90°
Manual Control Speed Pan: 0.1°/s–100°/s

Tilt: 0.1°/s–60°/s
Preset Speed Pan: 100°/s; Tilt: 60°/s
Preset 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Idle Motion Pattern; Preset; Tour
PTZ Protocol SD Pelco-P/D(Auto recognition)
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Detection Supports face detection, face track, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first.
SMD Yes
Video
Video Compression H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+
Streaming Capability 3 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296@25fps); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1(704 × 576); CIF(352 × 288); VGA(640 × 480)
Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p@(1–25/30

fps)

Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Sub stream 2: 720p@(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 2816Kbps – 13056Kbps H.265: 1024Kbps – 7936Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR DWDR
HLC Yes
White Balance Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Yes
Defog Electronic defog
Digital Zoom 16×
Image Rotation 180°
S/N Ratio ≥ 55 dB
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS
Interoperability ONVIF(Profile S&G&T); P2P; CGI; SDK
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (512 GB); NAS
Browser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions.
Management Software DMSS; DSS Pro
Mobile Client iOS; Android
Certification
Certifications CE: CE-LVD: IEC 62368-1/ CE-EMC/EN 55032/EN IEC 61000-3-2/EN55024/EN55035/EN50130-4

FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Port
Alarm Linkage Capture; preset; tour; pattern; recordings; alarm digital input; send email
Alarm Event Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
Power
Power Supply 12 VDC, 1 A ± 10%
POE (802.3af)
Power Consumption Basic: 2.3 W
Max.: 6.1 W
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity ≤ 95%
Protection IP66, IK10
Structure
Product Dimensions 89 mm × Φ122 mm (3.50″ × Φ4.80″)
Net Weight 0.5 kg (1.10 lb)
Gross Weight 0.7 kg (1.54 lb)
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.

PDF DH-SD22404DB-GNY

SD22404DB-GNY_S0_datasheet-20250115

SKU: SD22404DB-GNY Category: Brand:
