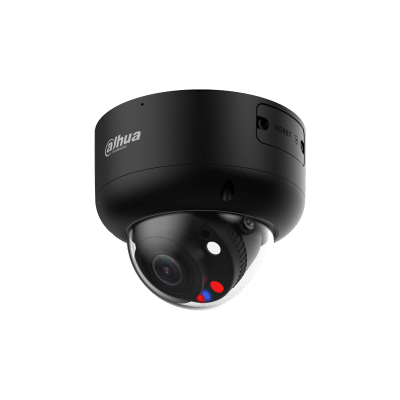

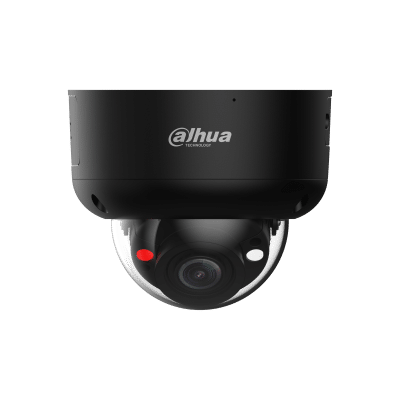

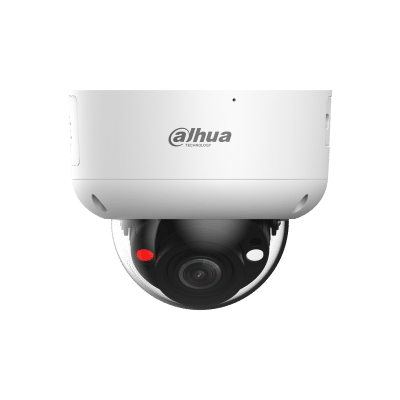

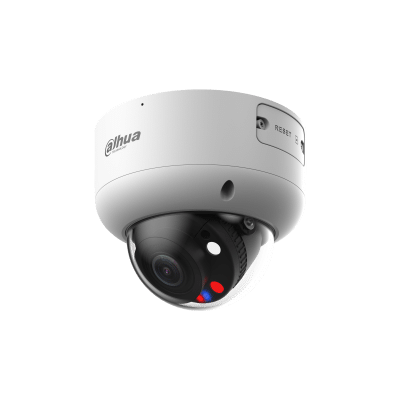

Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera
Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera - Image 2
Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera - Image 3
Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera - Image 4
Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera - Image 5

Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera

275 €344 € Excl. VATIncl. VAT

8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Request quote
Add to wishlist



  • 8-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply.
  • IP67 and IK10 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • Supports AI SSA and one-tap arming and disarming.
  • SMD area can be set in warm light areas that support triggering alarms.

Cryptsec | Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Dome WizSense Network Camera

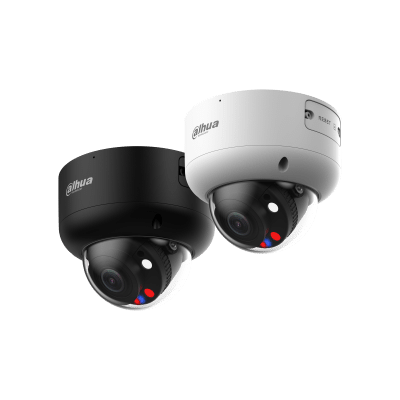

Colour

Black, White

Specifications

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Angle Adjustment Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ16
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.0
Field of View H: 108°–34°
V: 56°–19°
D: 130°–39°
Iris Control Fixed
Close Focus Distance 1.5 m (4.92 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 89.9 m (294.95 ft) 36.0 m

(118.11 ft)

 18.0 m

(59.06 ft)

 9.0 m

(29.53 ft)
T 257.4 m (844.49 ft) 103.0 m

(337.93 ft)

 51.5 m

(168.96 ft)

 25.7 m

(84.32 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.;(Some Models)
AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 3840 × 2160@(1–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps
*The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR/ABR
Video Bit Rate H.264:3 kbps–16384 kbps
H.265:3 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection;defocus detection; external alarm; SMD; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S; Profile G; Profile T); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE9/11
Chrome
Firefox
Management Software SmartPSS Lite; DSS; DMSS
Mobile Client iOS;Android
Cyber Security Video encryption; firmware encryption; configuration

encryption; Digest; WSSE; account lockout; security logs;

IP/MAC filtering; generation and importing of X.509

certification; syslog; HTTPS; 802.1x; trusted boot; trusted

execution; trusted upgrade
Certification
Certifications CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directve
2014/30/EUFCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 4.5 W (12 VDC); 5.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.9 W (12 VDC); 10.3 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Structure
Casing Material Metal
Product Dimensions 105 mm × Φ126.0 mm (4.13″ × Φ4.96″)
Net Weight 0.73 kg (1.61 lb)
Gross Weight 0.9 kg (1.98 lb)

PDF IPC-HDBW3849R1-ZAS-PV
